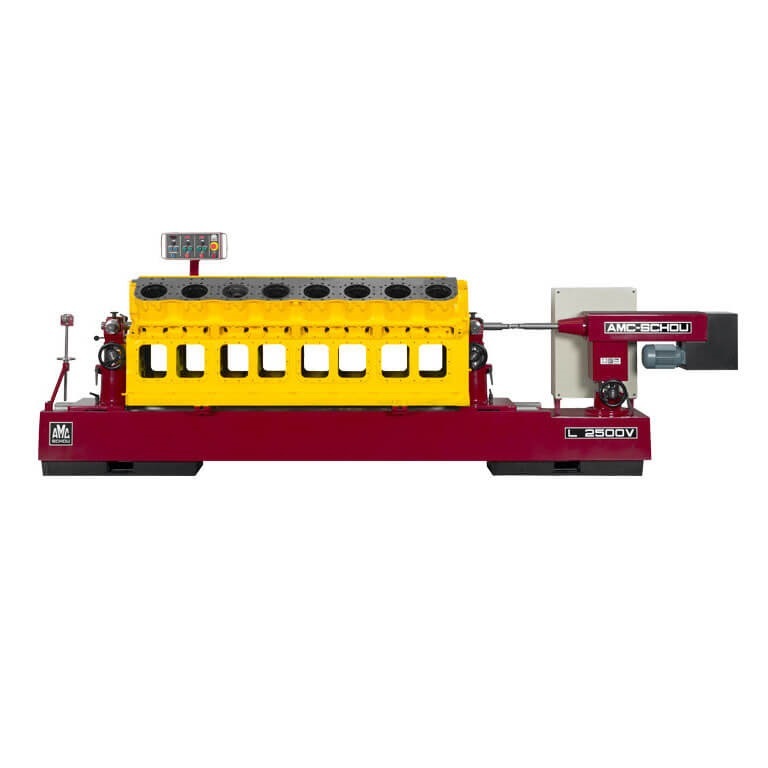

Send InquiryAMC-SCHOU L-2500V Line Boring Machine
MOQ : 1 Piece
AMC-SCHOU L-2500V Line Boring Machine Specification
- Machine Type
- Line Boring Machine
- Frequency
- 50 Hz
- Lubricating System
- Automatic
- Accuracy
- 0.01 mm
- Cooling System
- Integrated coolant system
- Operating Temperature
- 5-40C
- Control System
- Panel Controlled
- Power Rating
- 3 HP
- Voltage
- 380-415 V
- Features
- Sturdy bed, precision spindle
- Production Capacity
- High Volume
- Drive
- Belt Drive
- Model No
- L-2500V
- Noise Level
- 70 dB
- Frame Type
- Rigid cast iron
- Motor Power
- 3 kW
- Product Type
- Line Boring Machine
- Technology
- Conventional
- Power Source
- Electric
- Operating Type
- Semi-Automatic
- Power
- 3 kW
- Pressure
- Hydraulic
- Surface Treatment
- Paint Coated
- Dimension (L*W*H)
- 3400 x 1300 x 1900 mm
- Weight (kg)
- 3000 kg
- Color
- Blue/White
- Usage & Applications
- Boring of engine blocks, industrial line boring operations
- Spindle Bore
- 80 mm
- Table Travel (Cross)
- 400 mm
- Clamping System
- Hydraulic
- Max Workpiece Diameter
- 800 mm
- Feed Range
- 0.02-1.5 mm/rev
- Table Travel (Longitudinal)
- 2500 mm
- Main Spindle Motor
- 3 kW (4 HP)
- Spindle Speeds
- Variable 25-500 rpm
- Coolant Pump Power
- 0.125 kW
- Table Width
- 350 mm
- Max Boring Length
- 2500 mm
- Electrical Supply
- Three Phase
AMC-SCHOU L-2500V Line Boring Machine Trade Information
- Minimum Order Quantity
- 1 Piece
- Supply Ability
- 1 Piece Per Week
- Delivery Time
- 7 Days
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in AMC-SCHOU (Denmark) Category

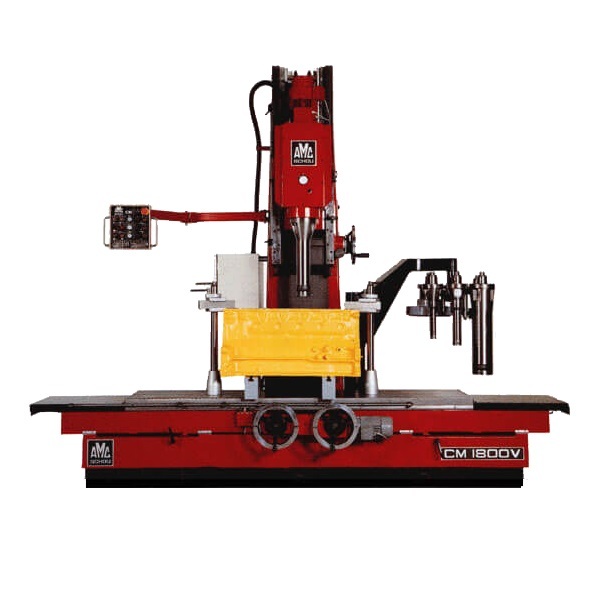

AMC-SCHOU CM-1800 Vertical Cylinder Block Boring cum Milling Machine
